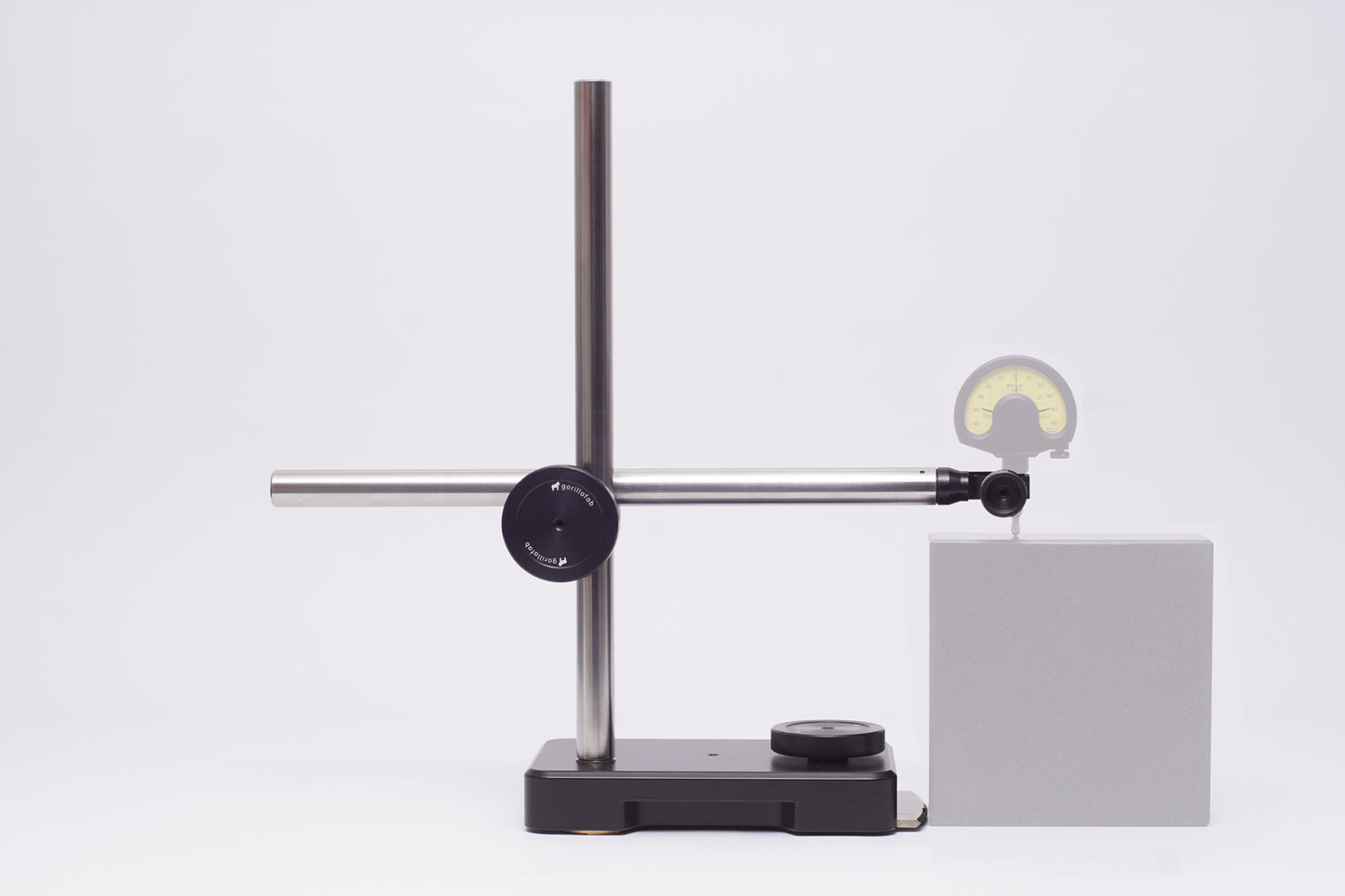

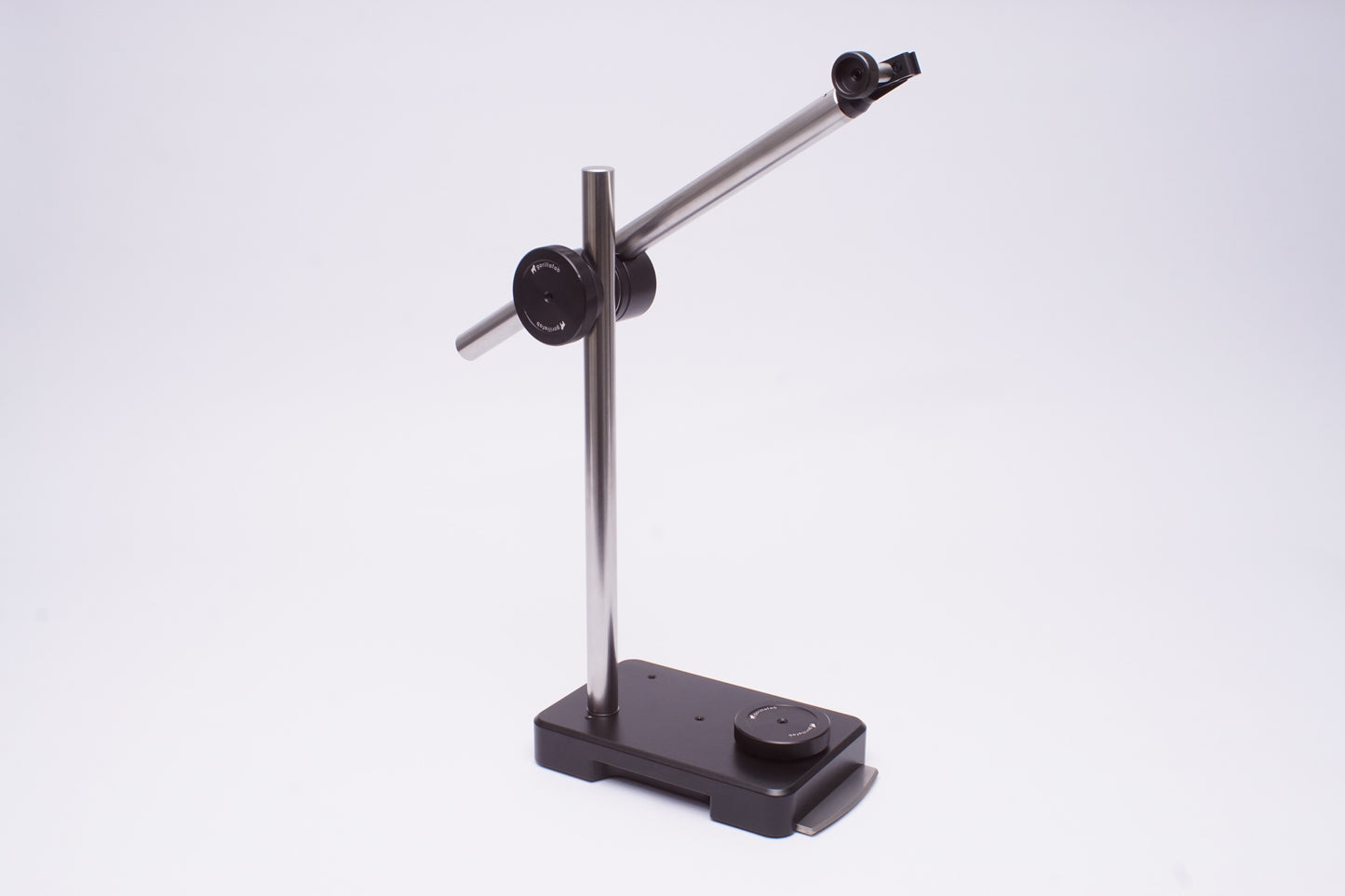

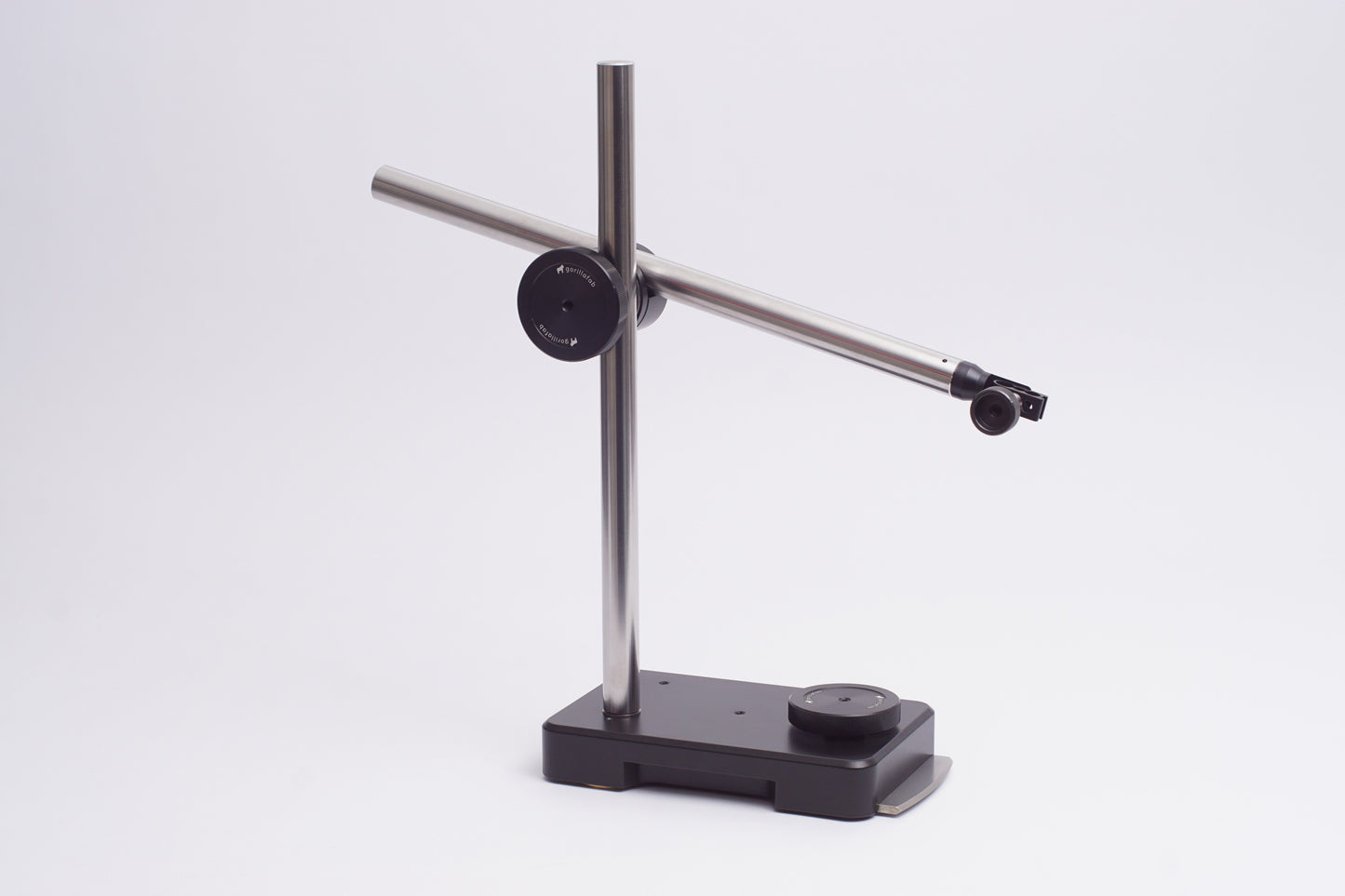

The gorillastand is a robust and highly precise indicator stand designed for holding dial gauges to test flatness, squareness, and dimensions, as well as for other precision measurement tasks. The product is intended for use on granite plates.
Maximum user-friendliness

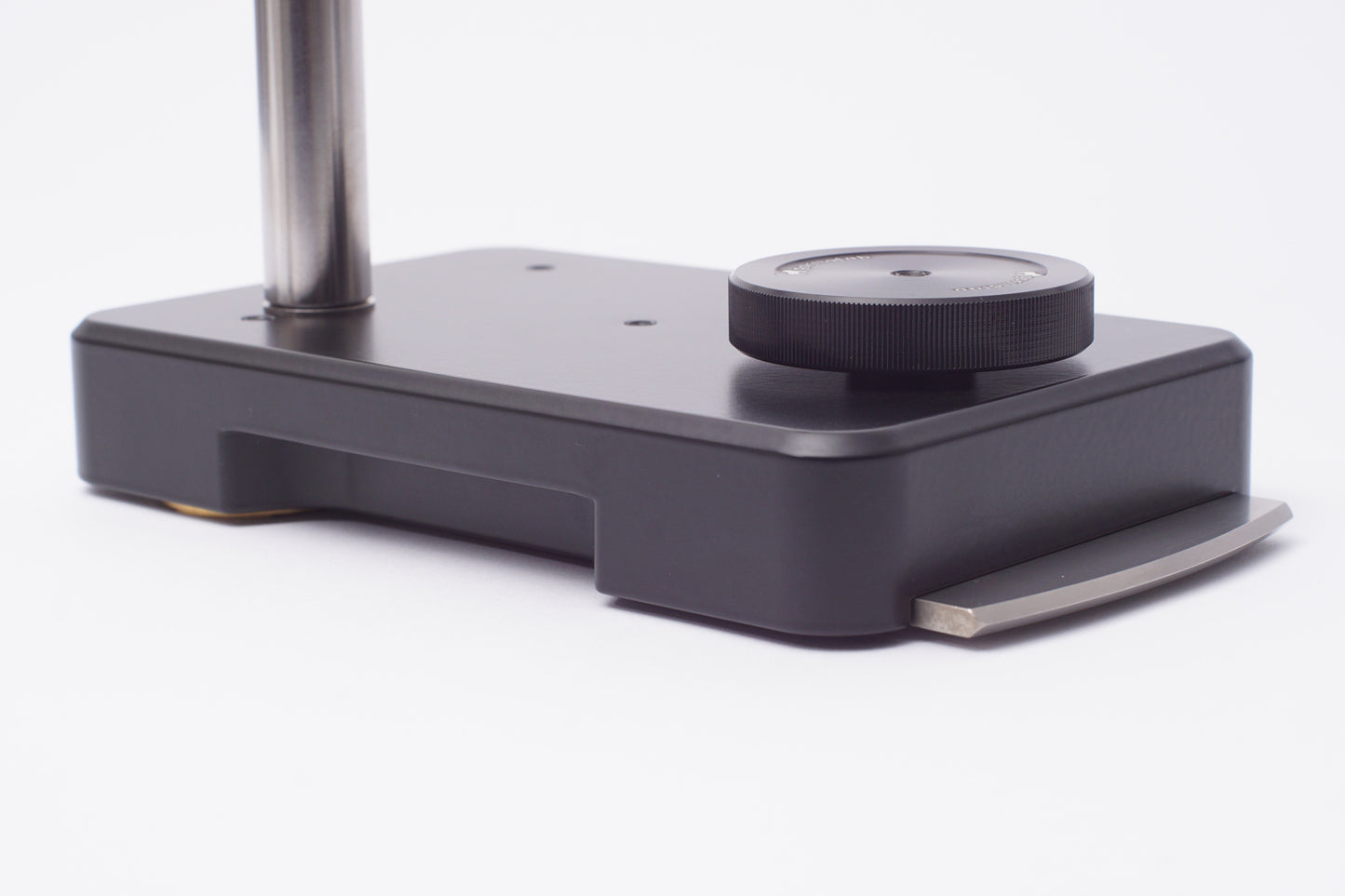

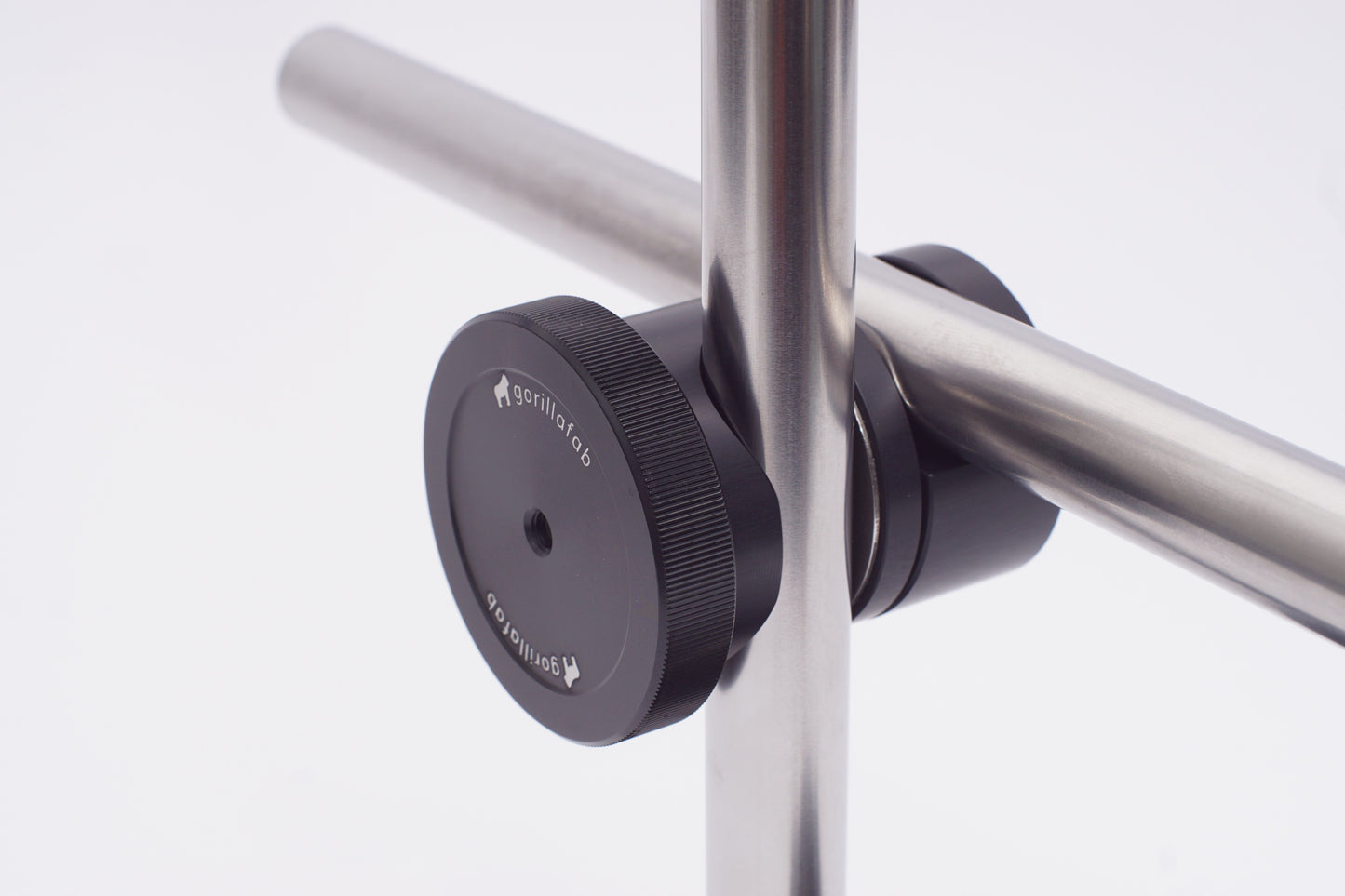

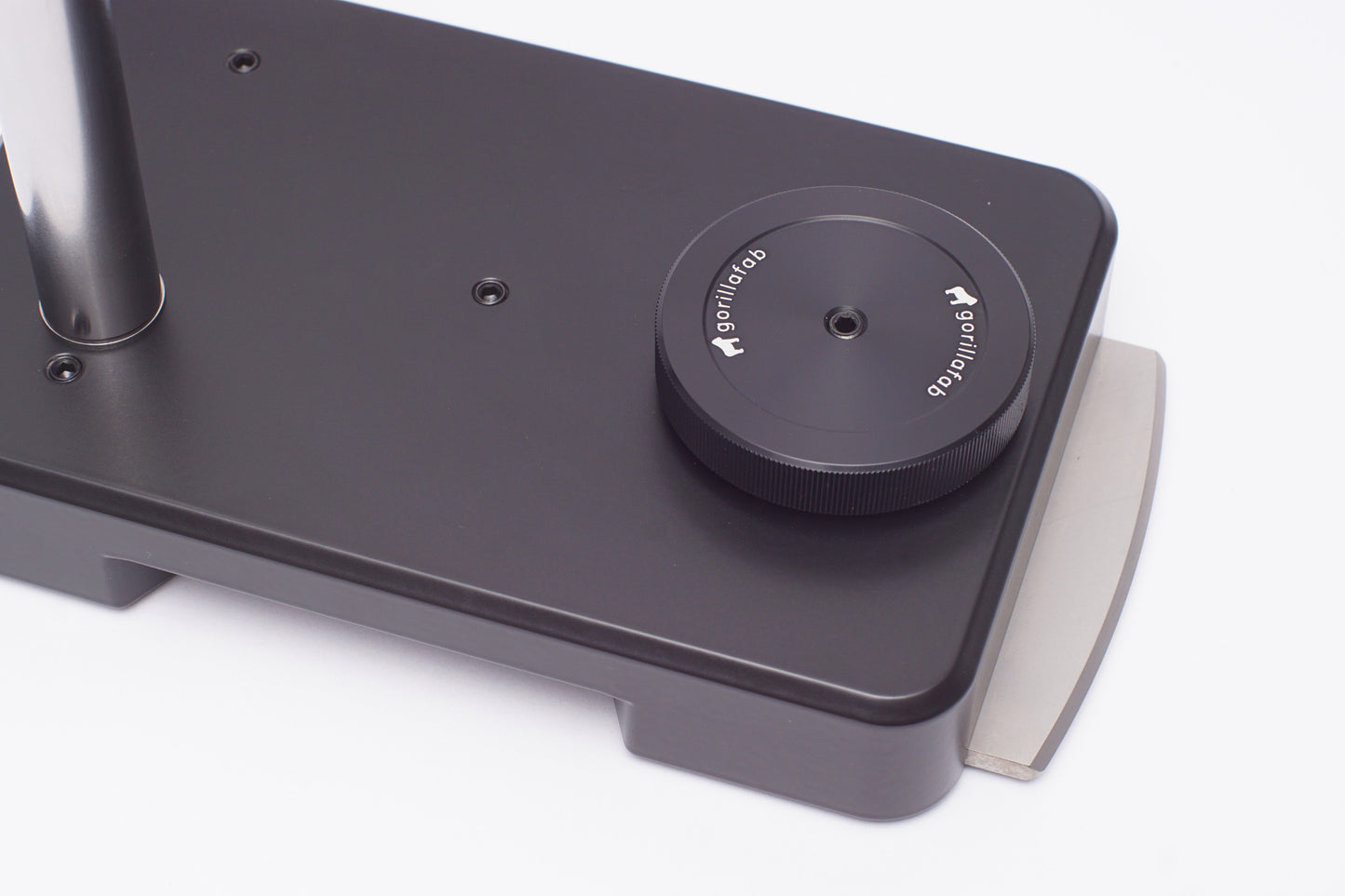

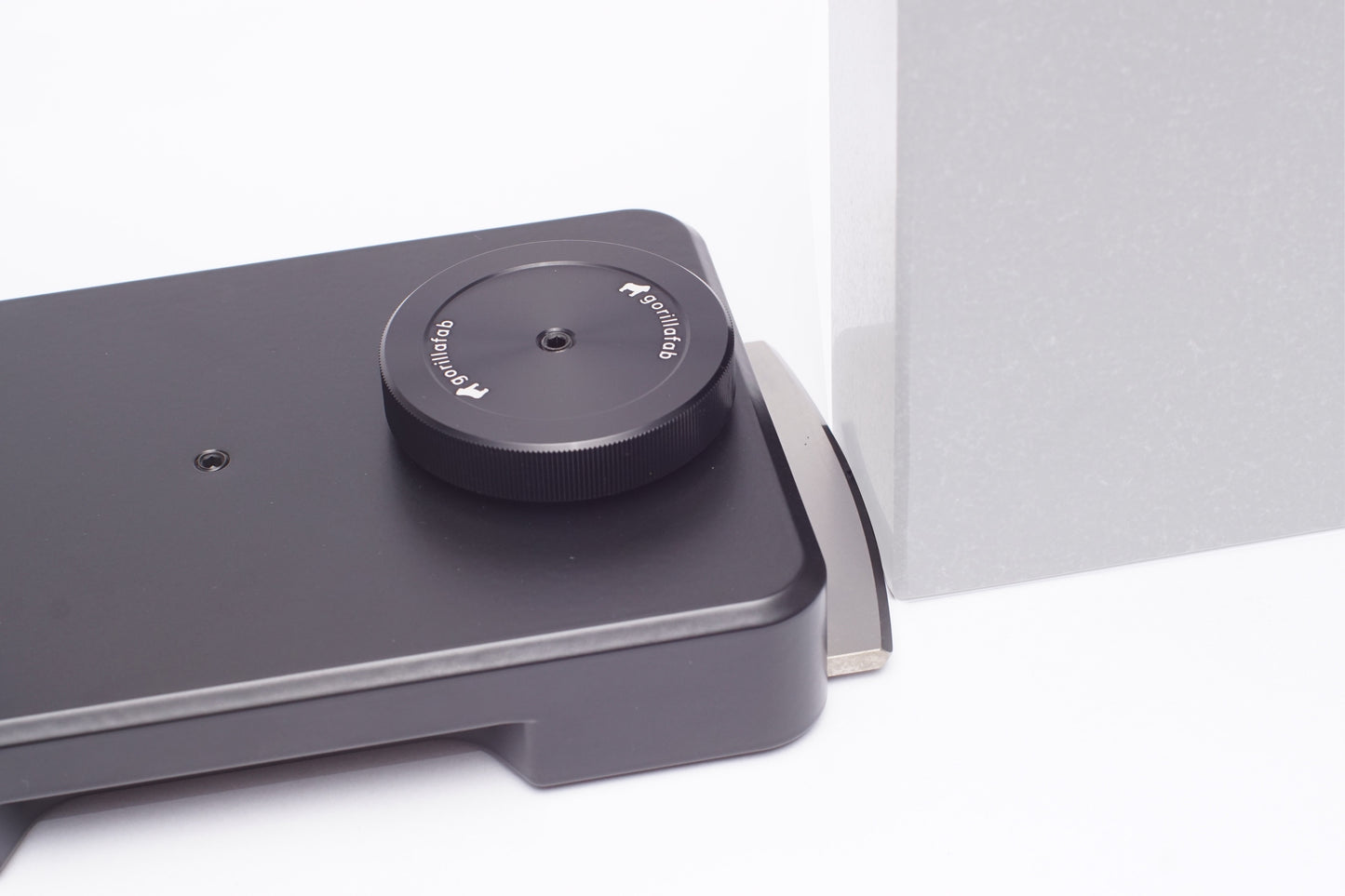

A large knurled knob for controlled fine adjustment, as well as a progressive clamping mechanism that allows adjustment of the measuring arm overhang independent of the measuring arm height, ensure high user-friendliness. Grip recesses in the base body increase safety when lifting the measuring stand.
Innovation instead of ground steel base

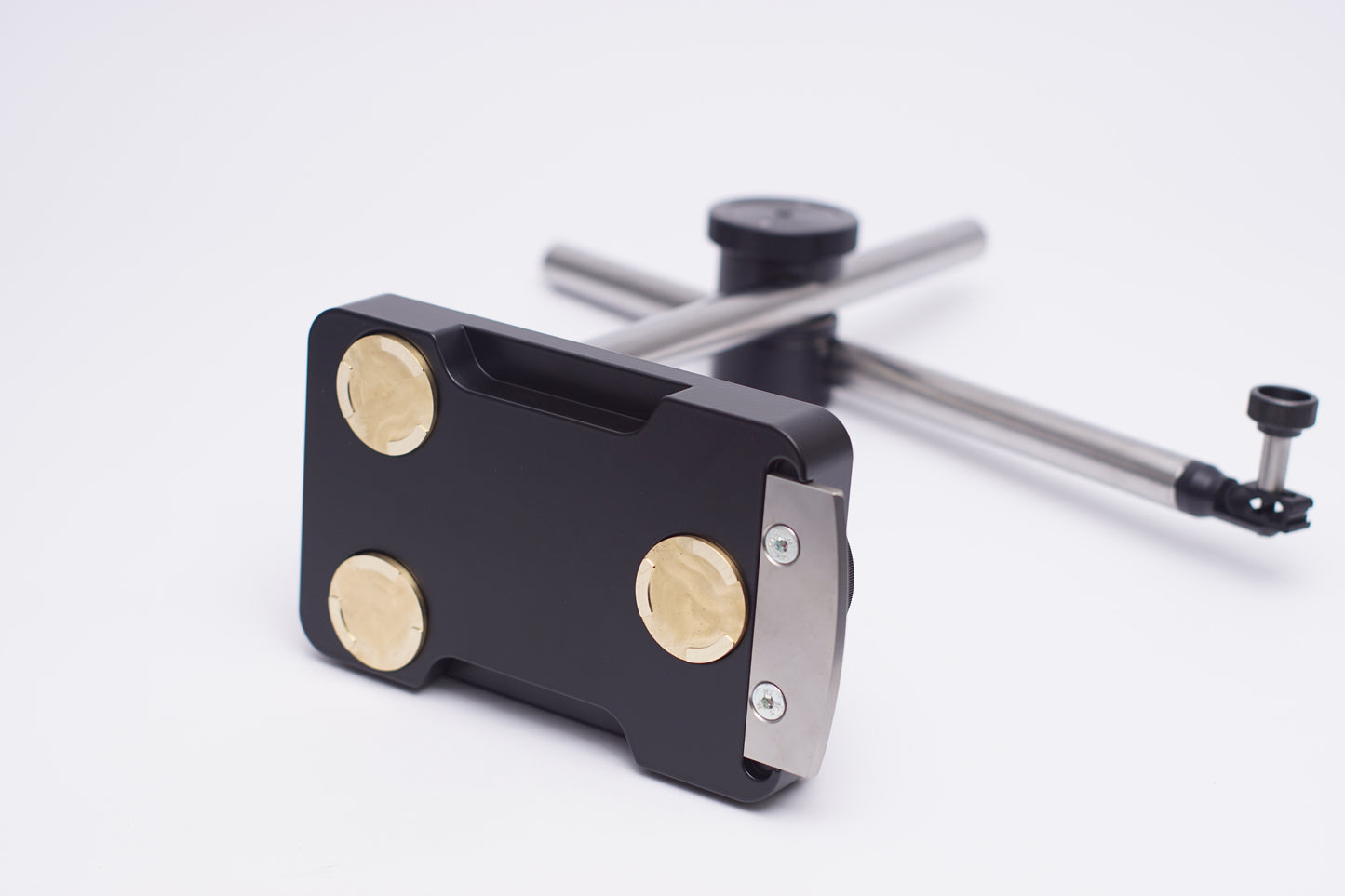

Thanks to an innovative base concept with three spherically mounted, lapped brass feet, the gorillastand is always statically defined. The brass feet allow easy sliding on a granite plate. Small burrs or scratches on the brass feet can be easily smoothed by circularly sliding on a granite table.
Technical data
Max. measurable part height
650 mm
Max. reach
300 mm
Dial gauge holder
6 mm, 8 mm, 3/8“, dovetail mount
Thread for measuring arm
M8 internal thread
Length of measuring arm rods
350 mm
Diameter of measuring arm rods
20 mm
Diameter of adjustment knobs
60 mm
Base body dimensions
210 mm x 120 mm x 50 mm
Total weight
9.4 kg

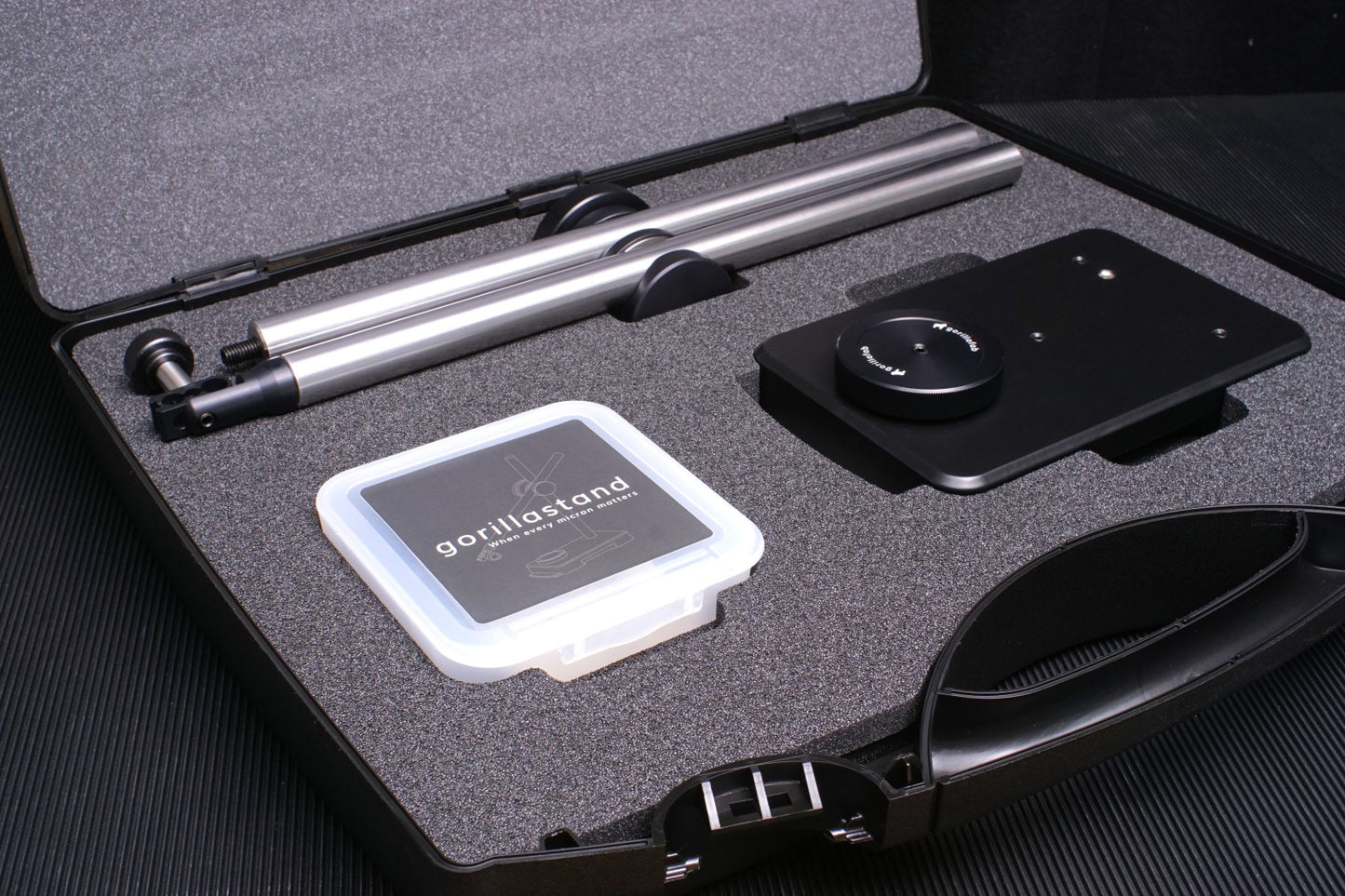

Storage case dimensions
450 mm x 380 mm x 110 mm
Scope of delivery
Powder-coated steel base with mounted feet and fine adjustment
Adjustable measuring arm assembly with dial gauge holder
